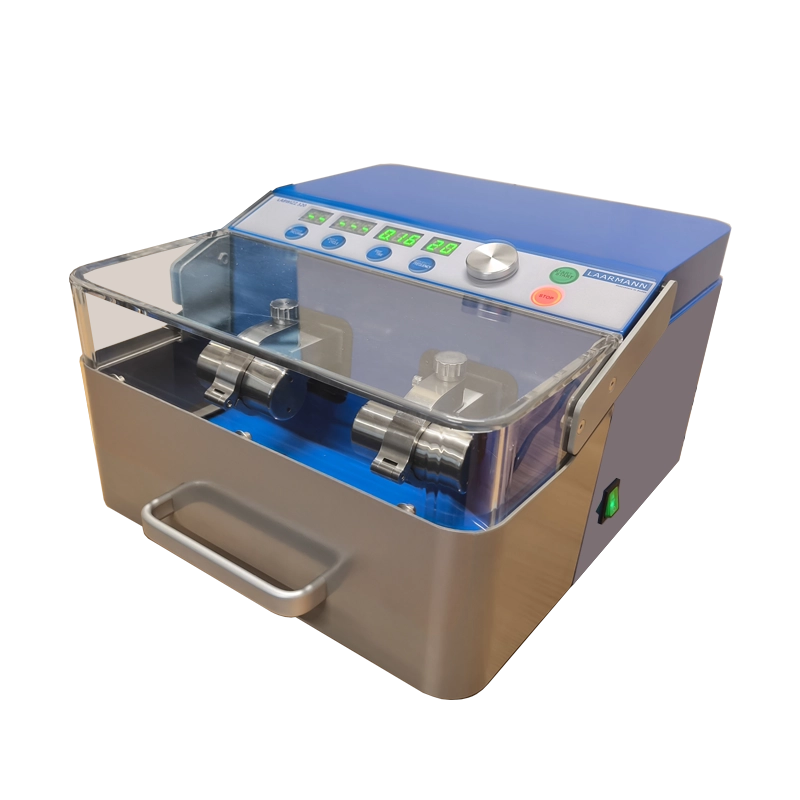

LMLW320 Lab Wizz 320 Micro Ball Mill
The Lab Wizz 320 Micro Ball Mill is a laboratory machine, which is suitable for mixing, milling and homogenizing soft, fibrous, hard and brittle materials in the dry and wet state.
The Lab Wizz 320 Micro Ball Mill is a laboratory machine, which is suitable for milling and homogenizing soft, fibrous, hard and brittle materials in the dry and wet state. It is used for fast, super fine milling of 2 samples simultaneously from 0.2 ml up to 160 ml. The closed milling system guarantees complete recovery of the samples. Owing to the extremely short milling time and the high final fineness of the milled material, the Lab Wizz 320 Micro Ball Mill is also ideally suitable for sample preparation for all spectral analyses. Final finenesses of down to 1 μm can be achieved, depending on the milling time and the specific properties of the sample material. The optimum milling cup filling is as a rule 1/3 of the milling cup volume. Exceptions to this are voluminous materials, such as wool, leaves, grasses and suchlike. In these cases a filling level of 70-80% is necessary.
Feautures and Benefits
- Universal and highly efficient grinding, blending and disruption

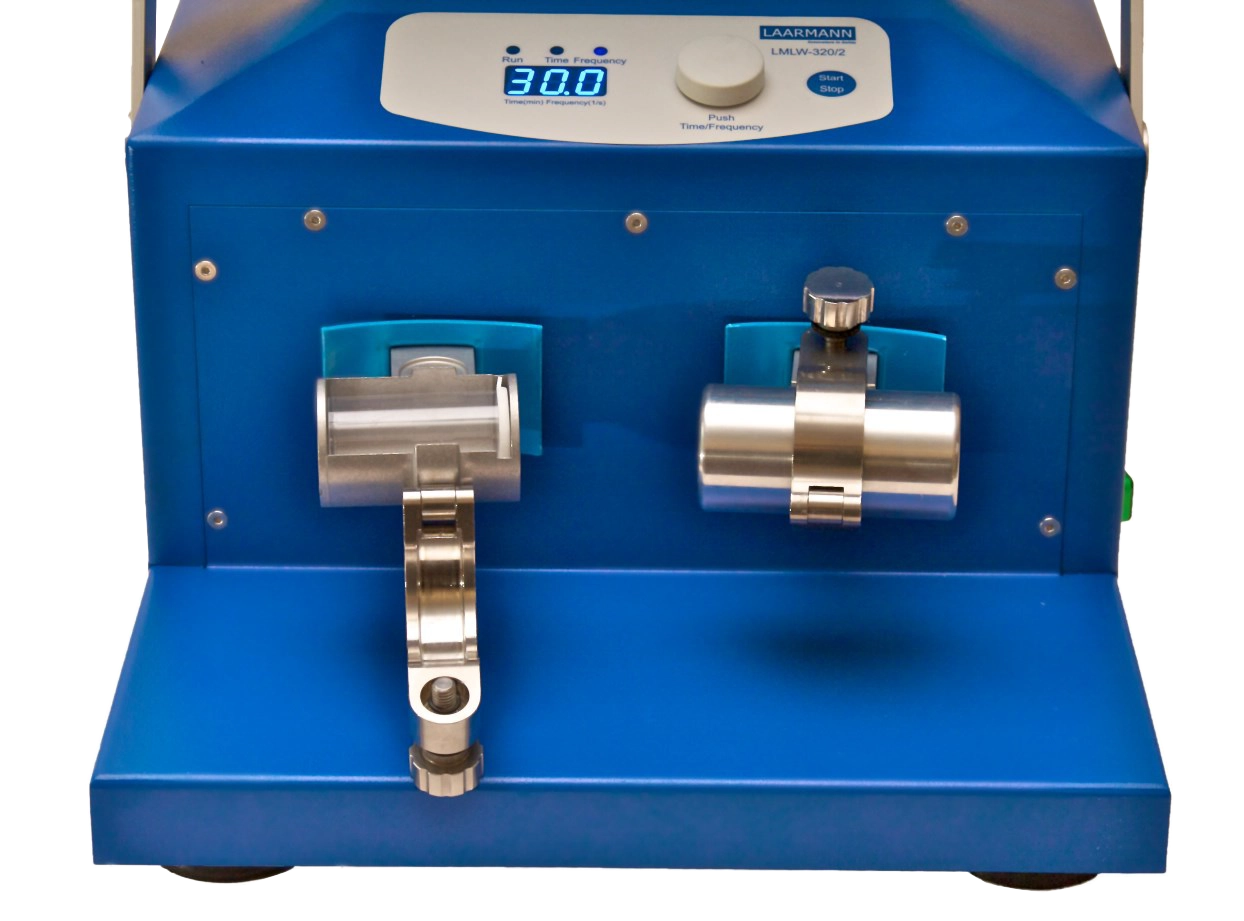

- Large range of grinding jars and accessories
- The Lab Wizz can handle simultaneously two or more samples from 0.2 ml up to 160 ml
- Dry Grinding / Wet Grinding / Ultra Fine Grinding /Cryogenic Grinding
- Turbulent Blending / Laminar Blending / Liquid-Liquid Dispersion / Gas- Liquid Dispersion
- Mechanical Alloying
- Cell disruption for DNA / RNA extraction
Technical Specifications
| Applications | separation of different materials, particularly minerals, by agitating a pulverized mixture of solids in liquids |
| Working principle | Friction |
| Feed size | < 50 ml |
| End fineness | < 5 μm* |
| Speed setting | from 3 to 30 Hz (180 - 1800 min-1),in 0.1 Hz steps |
| Setting adjustment method | digital |
| Consumeable material | stainless steel, tungsten carbide, zirconium oxide |

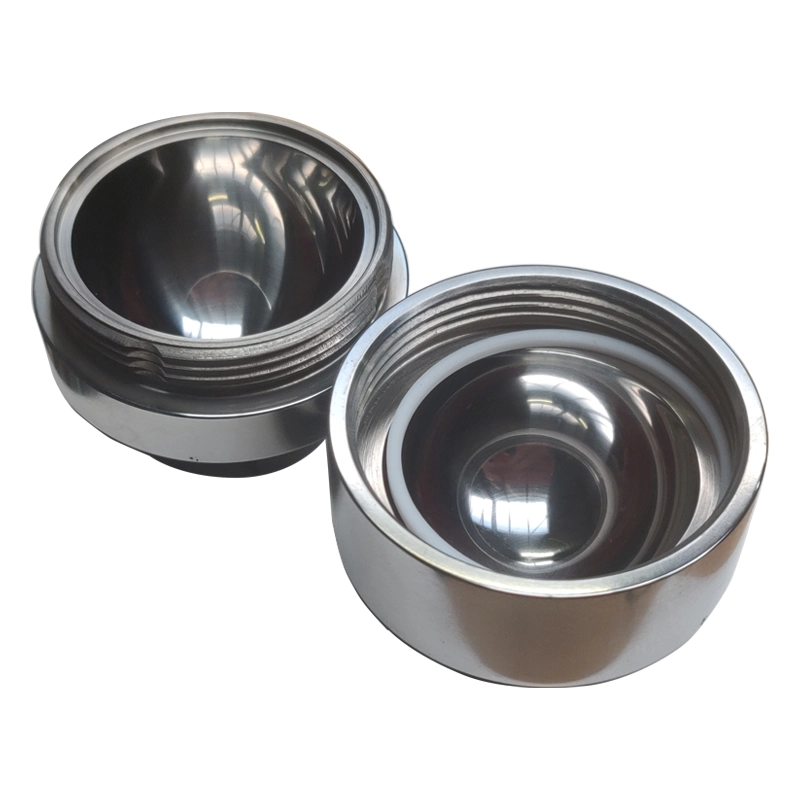

| Grinding jar volume | 50ml - 100ml - 160ml |
| Power supply | 230 ± 10% - 50/60Hz |
| Electrical requirements | 0,75 kW |
| Power connection | 1 phase |
| Standard | CE |
| Protection code | IP40 |
| Weight | 42kg |
| Dimensions (width x length x height) | 385 x 420 x 240 mm |
Grinding, Blending, Cell Disruption of samples
The LAARMANN® LAB WIZZ is designed for "1001 laboratory applications". Typical Processing times are at 30 seconds.
The LAB WIZZ can prepare 2 or more samples from 0,2ml of up to 160 ml. It is designed as well for high-sample throughput.

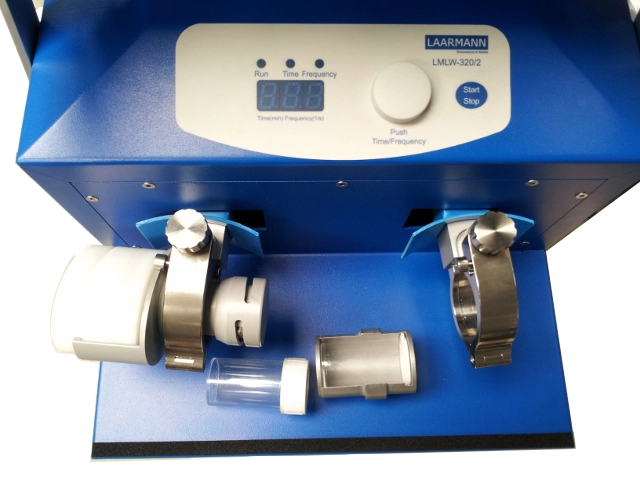

Micro vial holder for cell disruption
Designed for high analytical screening, the LAB WIZZ efficiently and safely disrupts samples of
spores, micro organisms, plant and animal tissue or soil samples at a time. The samples along
with extraction media and small metallic or ceramic balls are placed in micro vials. After 2
minutes of preparation in the lab wizz more than 95% of the cells are disrupted. Because balls
and vials plates are disposable the method is ideal for PCR, PAGE, and probe applications PCR, PAGE, and probe applications where cross contamination between samples cannot be tolerated.

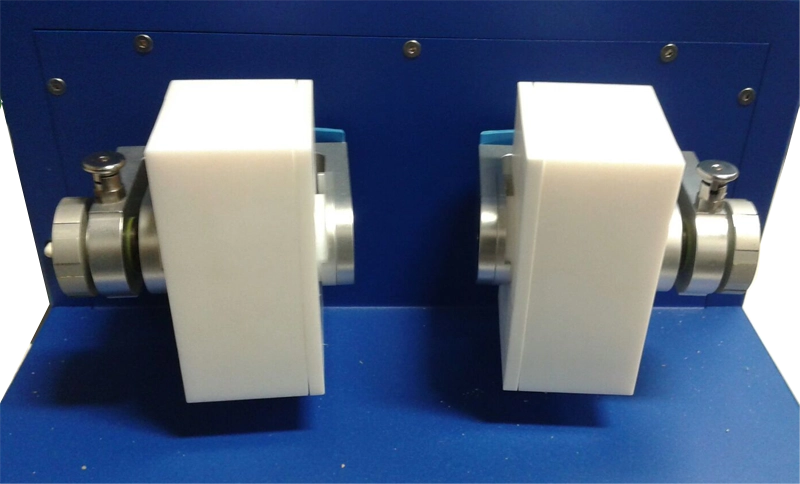

- Micro vial adapter plate for 10 micro vials
- Micro vial adapter for 4 micro vials
Maximum Grinding performance and safety
Due to an integrated motor-break the machine can only be started

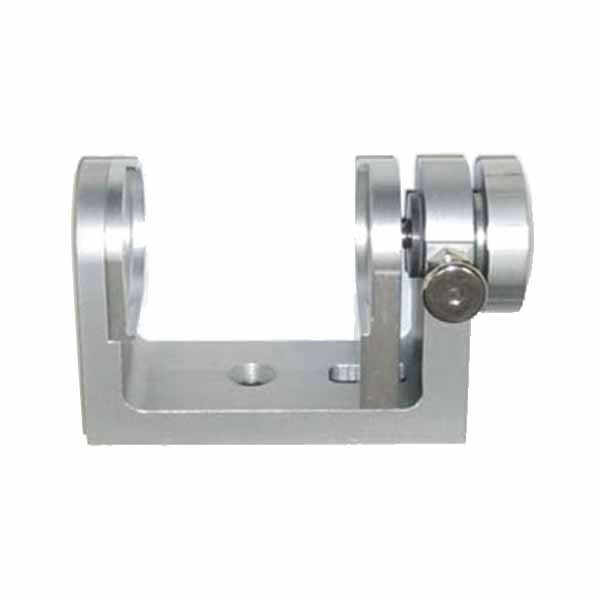

when the cover is closed. The unique "Easy Clamp system" allows the
simple, fast and safe clamping of all grinding jars up to 100ml.
The grinding chamber, easy clamp system as well as the swinging arm is made
from high precision stainless steel to meet all food and pharmaceutical requirements.
With our new motor concept and a motor drive, the Lab-Wizz is maintenance free.
