Sampling installation with LMFC250 and RSD sample divider

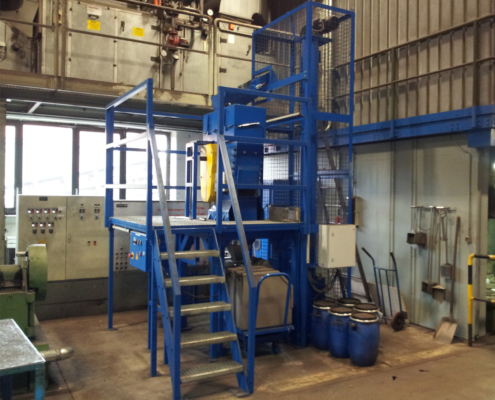

The installation of LAARMANN Group BV has simplified the size reduction process for this steel company to a mere push of a button. Now since there is no more need for the operator to lift any heavy materials or perform multiple actions the process is more efficient, resulting in more samples and an overall higher quality.

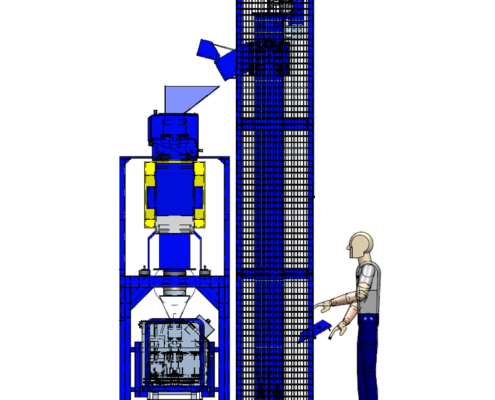

The installation is custom designed and engineered for heavy sample material like ferrochrome. The sample is transported up with an lifting device and will fall into the LMFC250 Fine Crusher.
The LMFC250 Fine crusher is enable to crush extremely hard and brittle materials like ferrochrome and tungsten carbide. the crushed sample is transported into the Rotary Sample Divider 30-60L and will be divided into buckets that has custom options available on request
