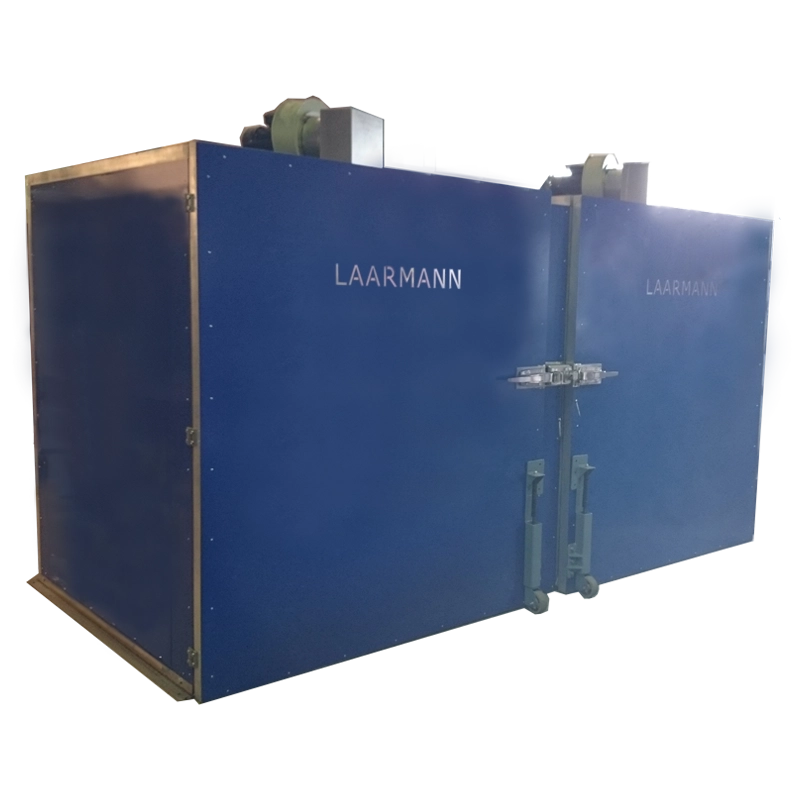

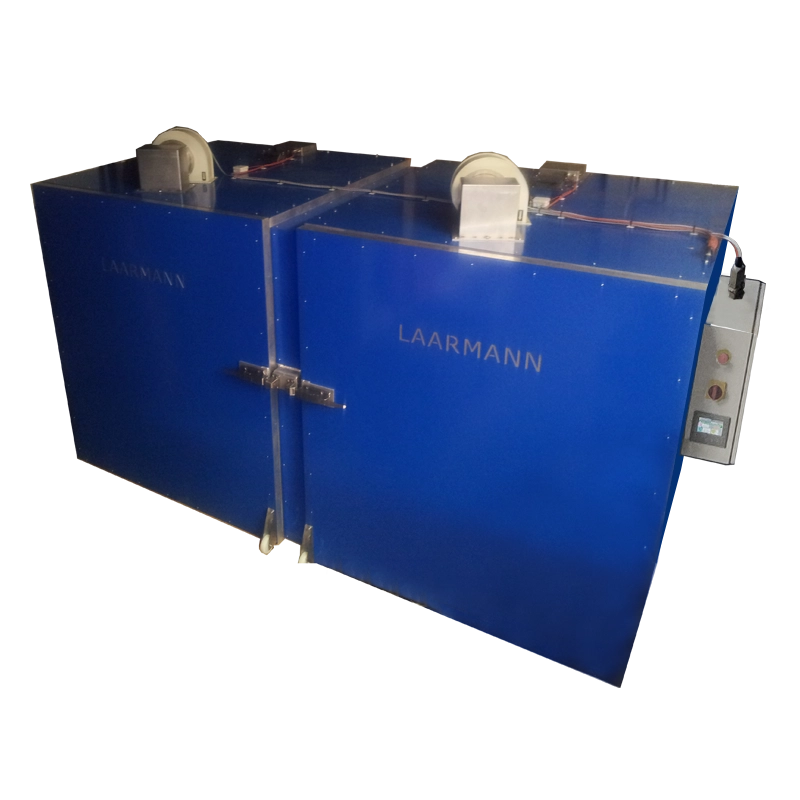

LMHAD10000 Drying Oven
High capacity and high volume Industrial Drying Oven to remove moisture from materials or products through controlled heating
High Quality hot air cabinet with 10m³ internal volume designed to withstand the corrosive environment inherently created within them by the combination of high temperature, moisture and often chemically active atmosphere created by the drying process. Moisture within the cabinet is prevented from passing through the internal walls to corrode the cabinet's framework by a combination of the use of "blind" stainless steel rivets and specific sealing of all internal joints. Robust refrigeration style handles are fitted to the cabinet door/s which allow external and internal operation.
Features and Benefits
- Digital control by touch screen
- precise temprature control
- efficient insulation and heating systems
- suitable for large manufacturing facilities
- can handle a wide range of materials and industrial applications
Technical Specifications
| Applications | Soil samples, drill core, mineral samples, heating up of drums, agriculture samples |
| Working principle | Drying with hot air |
| Internal volume | 10.1 m³ |
| Number of trolleys | 4 x 6 shelves |
| temprature setting | 20° - 120° |
| Setting adjustment method | digital control panel |
| Consumeable material | standard steel |
| trays sizes | 65mm deep |
| Power | 24 KW |
| Power supply | 3x400V, 50Hz |
| Fan power details | 0.75kW, 1phase 230V 50Hz, 3phase 230/400V 50Hz |
| Electrical requirements | 2,2 kW |
| Power connection | 3 phase |
| Dust extraction point | 1 |
| Standard | CE |
| Protection code | IP40 |
| Weight | ≈ 3000kg |
| Dimensions (width x length x height) | 3697 x 1775 x 2255 mm |
Drying Oven working principle
An industrial drying oven for sample preparation is a robust and high-precision piece of equipment used in laboratories and mining facilities to remove moisture from samples, typically minerals, ores, or geological materials.
These ovens operate at controlled temperatures, often ranging from ambient to several hundred degrees Celsius, to ensure consistent and uniform drying without altering the chemical or physical properties of the material.
Constructed from durable materials like stainless steel and equipped with advanced temperature control systems, industrial drying ovens provide a stable environment for rapid, efficient moisture removal, which is essential for accurate sample
analysis in processes like weighing, grinding, and chemical testing. With features like forced air circulation for even heat distribution and programmable settings for different drying protocols, they are essential for preparing samples for subsequent testing or analysis.

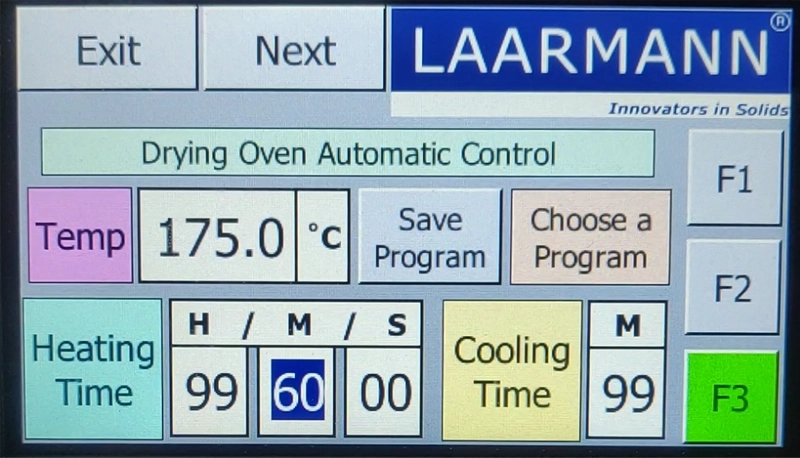

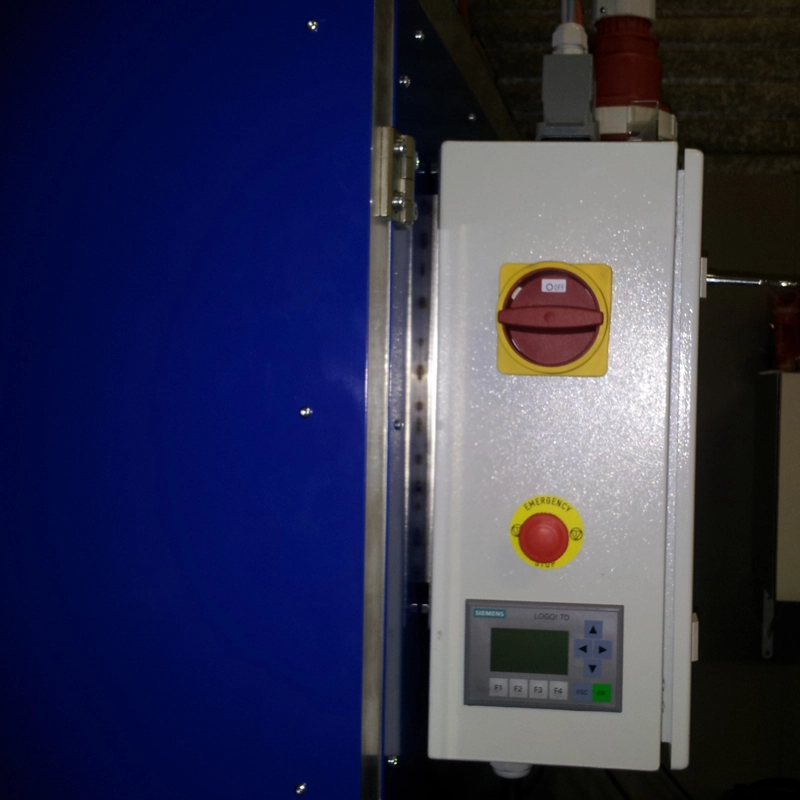

Control Panel
An industrial drying oven for sample preparation is a robust and high-precision piece of equipment used in laboratories and mining facilities to remove moisture from samples, typically minerals, ores, or geological materials.
These ovens operate at controlled temperatures, often ranging from ambient to several hundred degrees Celsius, to ensure consistent and uniform drying without altering the chemical or physical properties of the material.
Constructed from durable materials like stainless steel and equipped with advanced temperature control systems, industrial drying ovens provide a stable environment for rapid, efficient moisture removal, which is essential for accurate sample analysis in processes like weighing, grinding, and chemical testing.
With features like forced air circulation for even heat distribution and programmable settings for different drying protocols, they are essential for preparing samples for subsequent testing or analysis.
Drying Ovens FAQ (Frequently Asked Questions)
Applications
- Used to dry active pharmaceutical ingredients (APIs), tablets, powders, and other formulations under controlled conditions to ensure product quality and stability.
- Employed to dry fruits, vegetables, meats, and other food products, preserving them for long-term storage or further processing.
- Utilized to remove moisture from electronic components, circuit boards, and assemblies to prevent corrosion and ensure proper functioning.
- Applied in the drying and curing of coatings, paints, and adhesives on automotive parts and components.
- Used to dry ceramics, plastics, textiles, and other materials during production processes, ensuring consistent product quality
