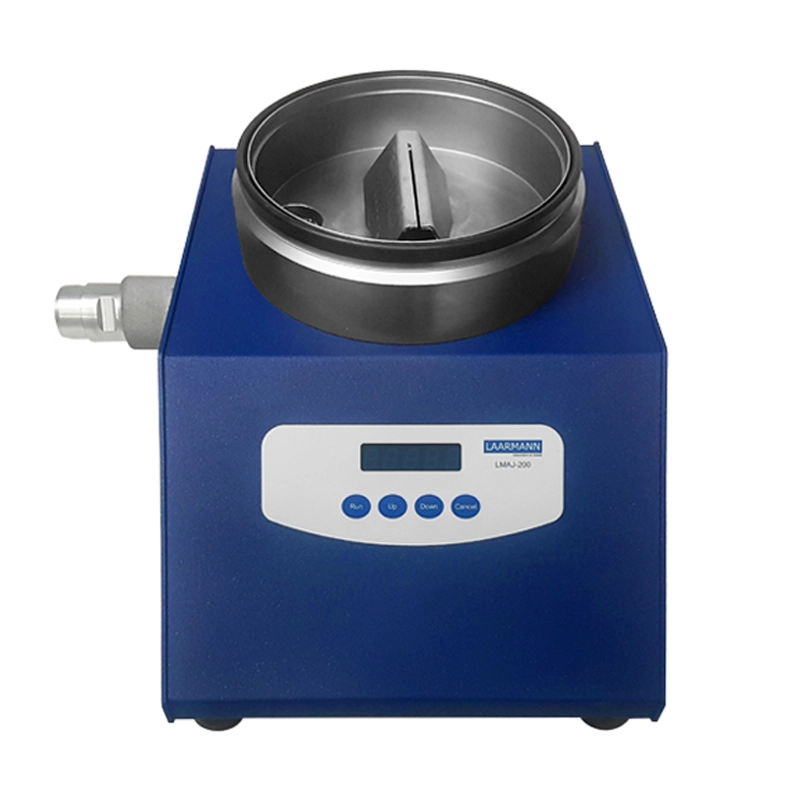

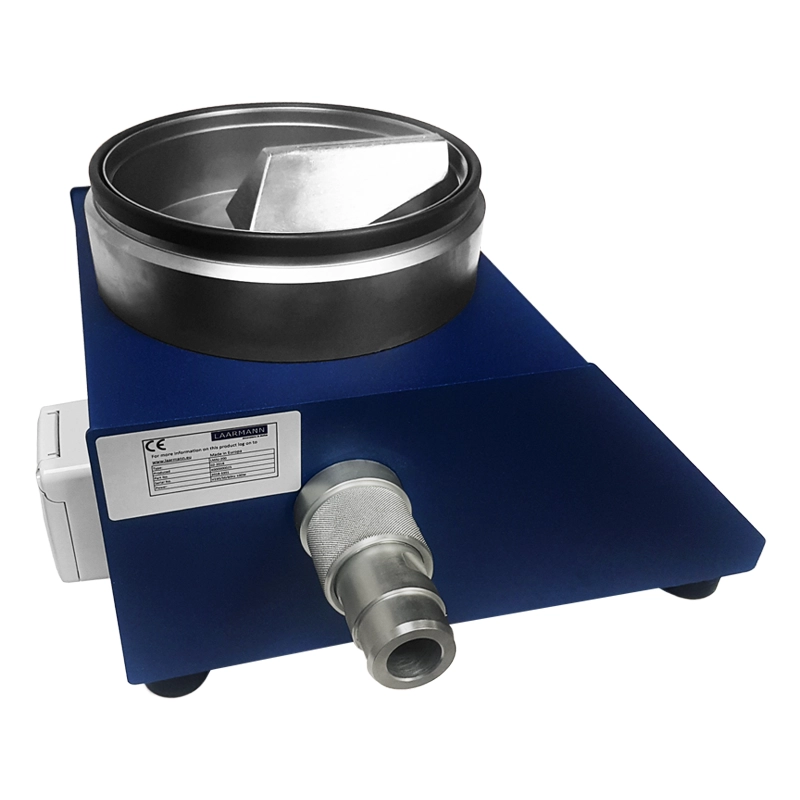

LMAJ200 Air Jet Sieve Shaker
The LAARMANN Air Jet Sieving Machine is used for particle test separation of powder and dry substances.
The air jet machine is used for sieving powder and dry grain products by obtaining sieving results between 5 to 4000 microns. Its working foundation is based on the use of air that tug thin particles to make them go through the sieve. This effect is made through a vacuum machine that provokes a controlled decrease of pressure.
Features and Benefits
- Easy to operate and maintain
- rapid and efficient sieving results
- minimizes sample loss and contamination
- ideal for materials that are prone to clumping
Technical Specifications
| Applications | separate, classify, and analyze particle sizes in materials like powders, aggregates, and soils for quality control and research purposes. |
| Working principle | sieving with air |
| Throughput air | 0-99 mBar |

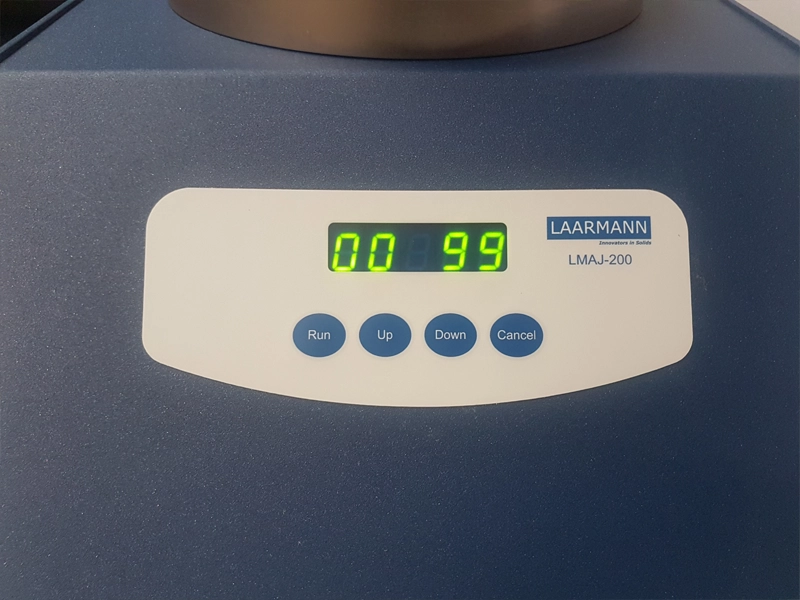

| Setting adjustment method | control panel |
| Sieve support size | 200mm diameter / 8 inch |
| Sieve mesh sizes availible | 20μm - 1,7mm |
| Sieve stack | 1 or 2 sieves |
| Electrical requirements | 3 kW |
| Power supply | 220-240V ± 10% - 50Hz |
| Power connection | 1 phase |
| Dust extraction point | 1 |
| Standard | CE |
| Protection code | IP40 |
| Weight | 25kg |
| Dimensions (width x length x height) | 300 x 520 x 850 mm (including rods) |
Air jet Sieve shaker working principle
The LAARMANN LMAJ200 Air Jet Sieve Shaker separates particles by combining a controlled air jet with vacuum-assisted pressure reduction. A rotating nozzle directs a focused air stream through the sieve fabric to disperse and fluidize powders that would otherwise compact, agglomerate, or blind the mesh. The vacuum maintains a consistent airflow through the sieve, improving separation efficiency and repeatability while keeping the process cleaner. This working principle is particularly effective for fine, light, or cohesive powders, where conventional mechanical sieving may struggle.
How it works

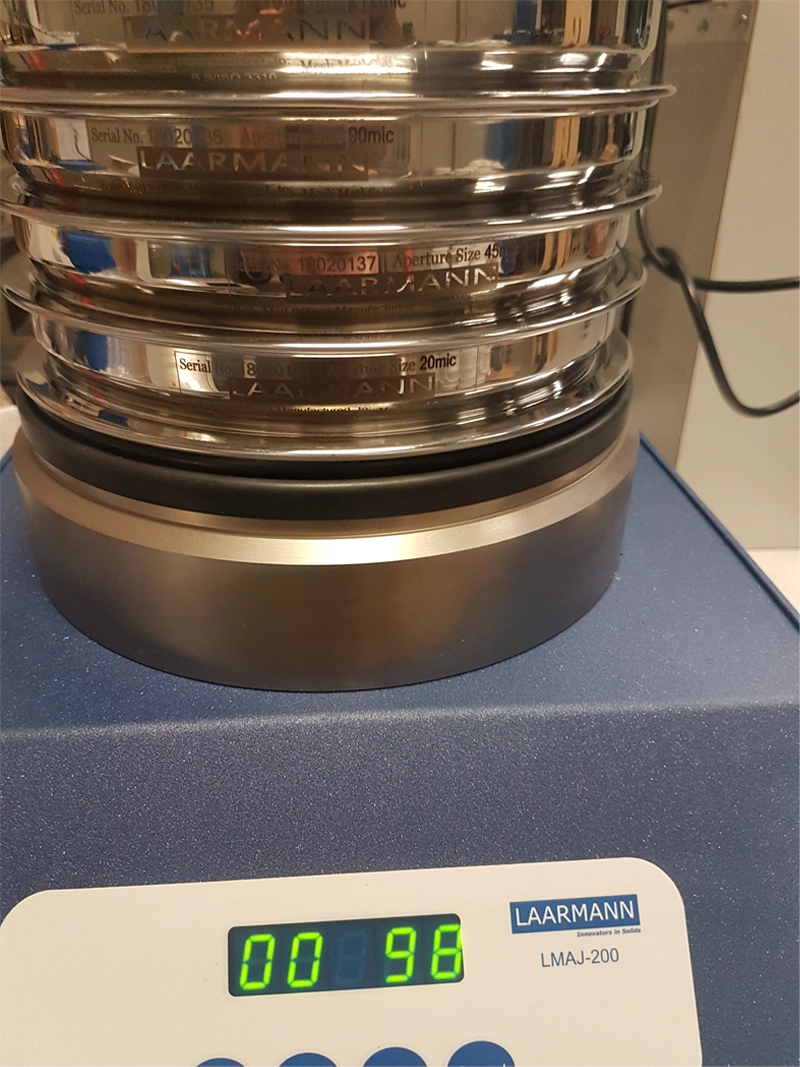

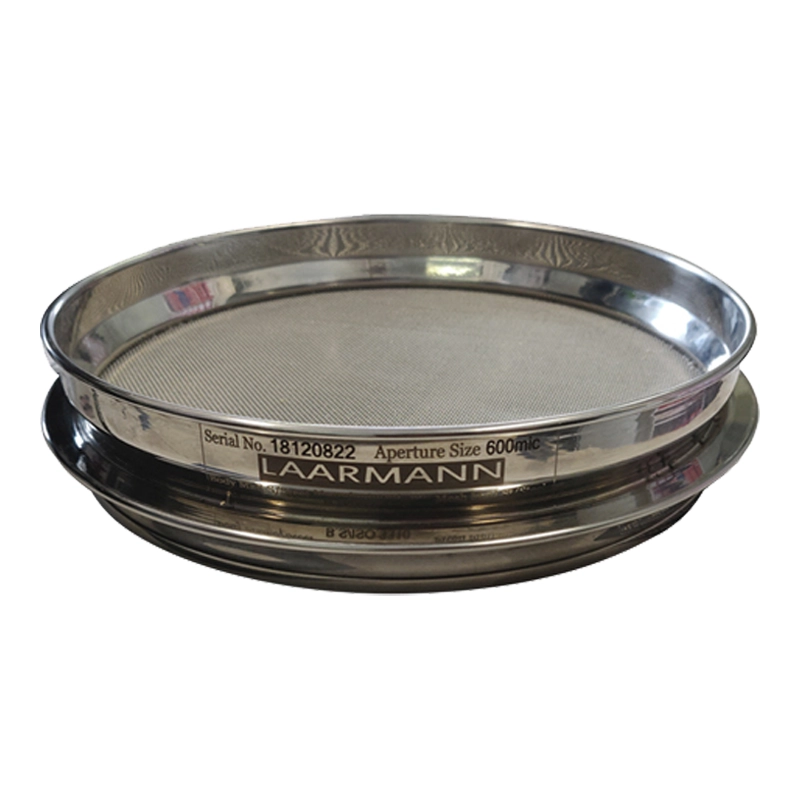

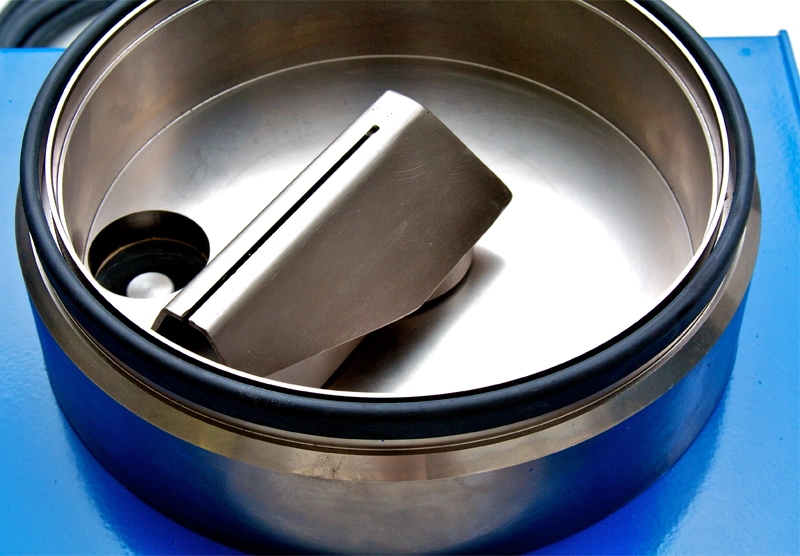

In the LMAJ200, the sample is placed on a 200 mm / 8" test sieve and enclosed with a collector and lid to support controlled airflow. During operation, the rotating slit nozzle sweeps a high-velocity air jet across the sieve surface, continuously loosening the material and bringing fresh particles into contact with the mesh openings. At the same time, the connected vacuum/dust extraction creates pressure reduction beneath the sieve and pulls air uniformly through the mesh, helping undersize particles pass efficiently into the collector while oversize remains on the sieve. The result is a fast and repeatable separation that reduces sieve blinding and supports reliable particle size analysis.
LMAJ200 Air Jet Sieve Shaker FAQ (Frequently Asked Questions)
Applications
The ability to precisely control the airflow and sieve settings makes air jet sieve shakers suitable for a range of applications, including pharmaceuticals, cosmetics, food powders, and fine minerals.
