Gold refinery plant with several set-ups

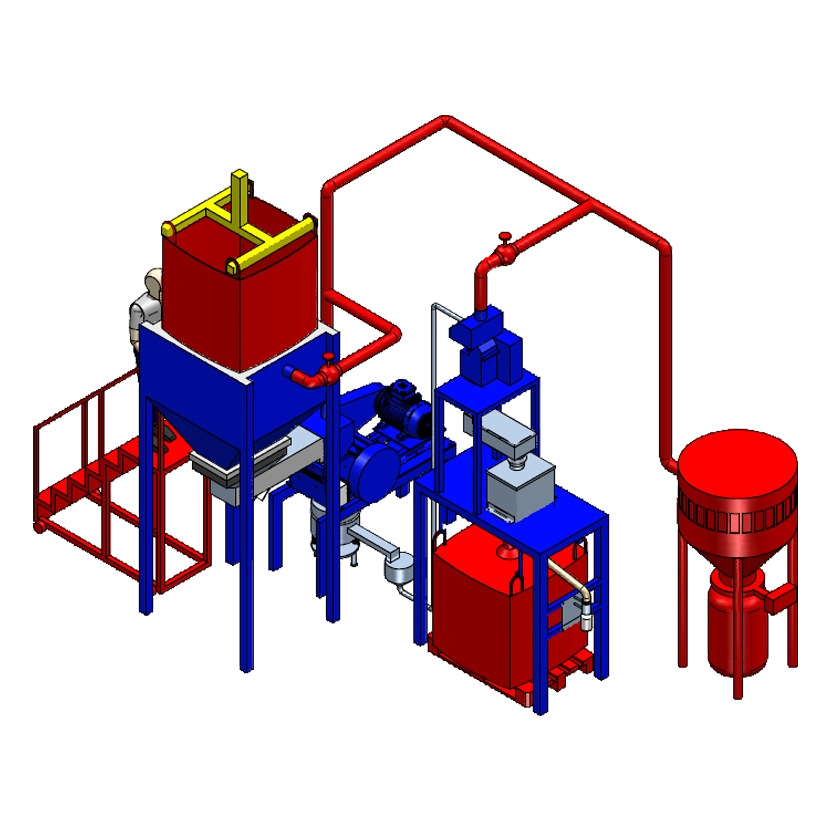

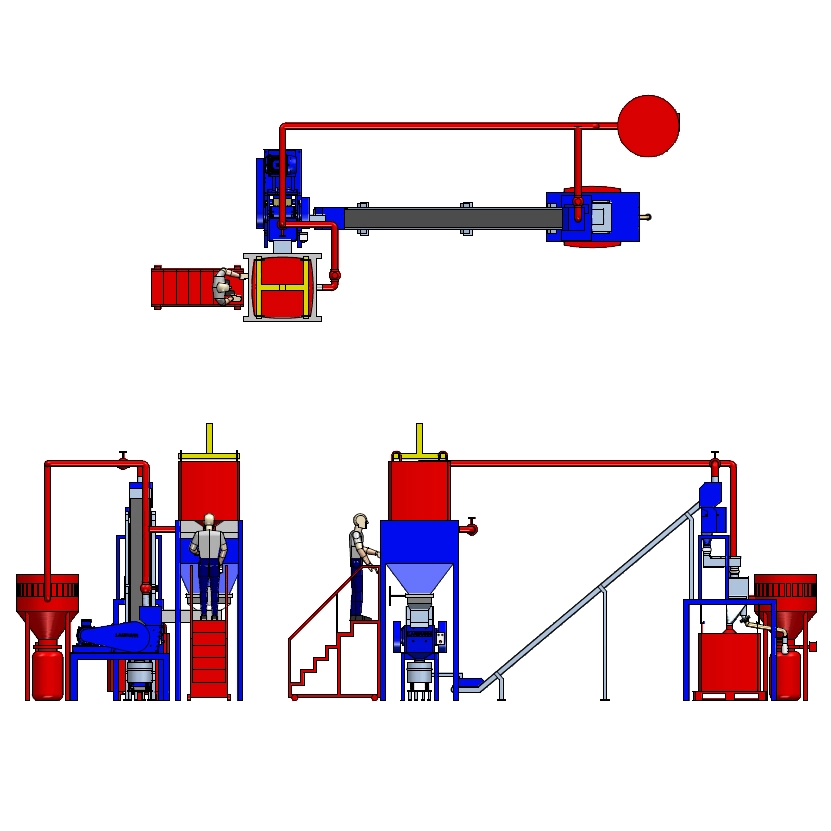

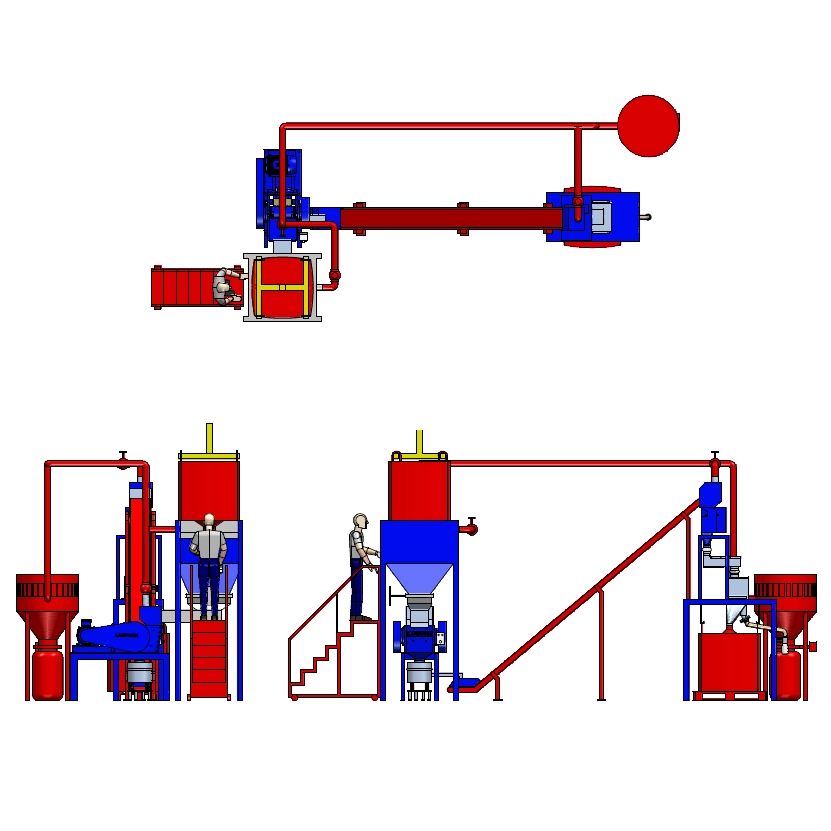

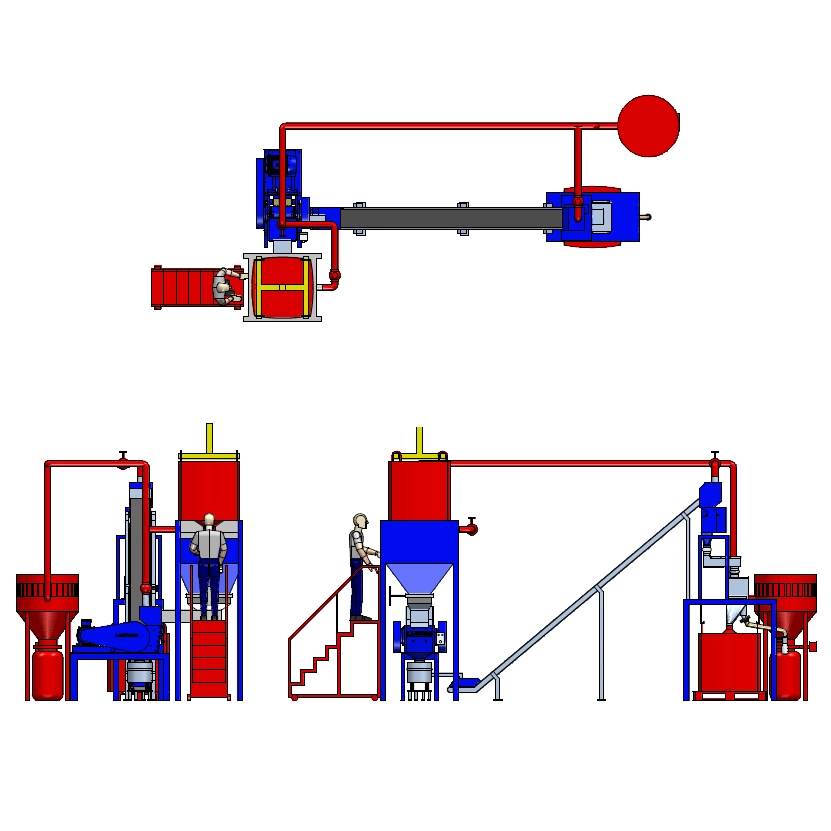

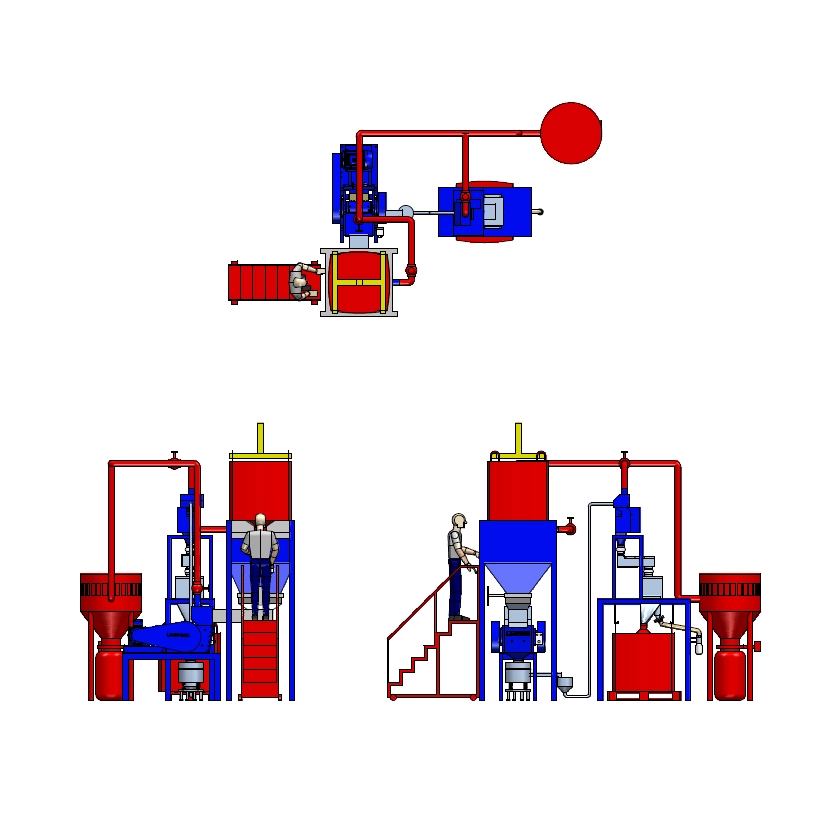

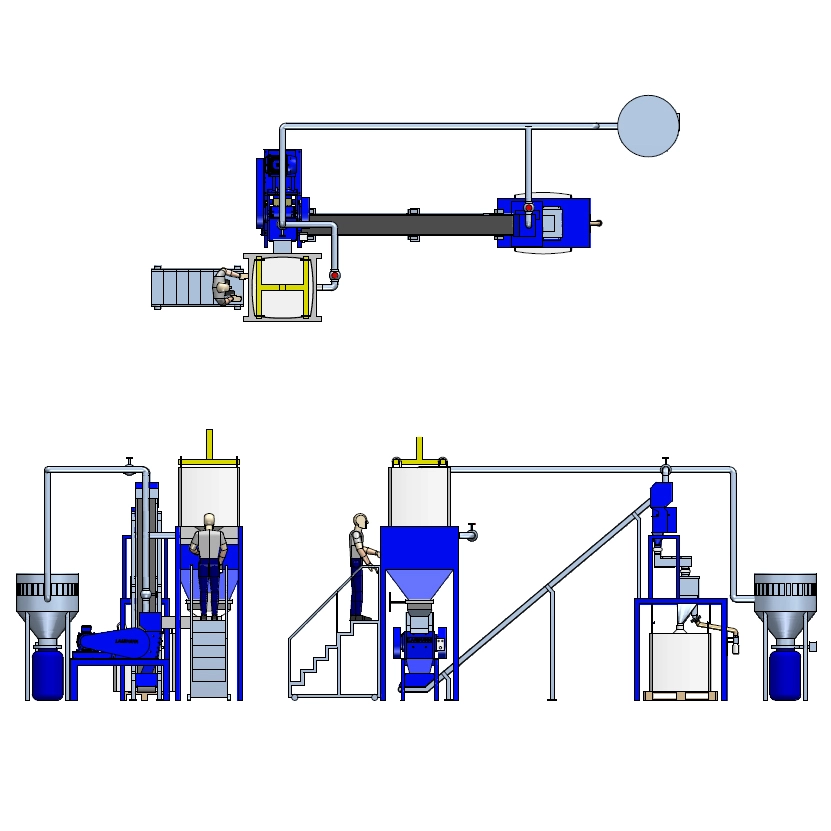

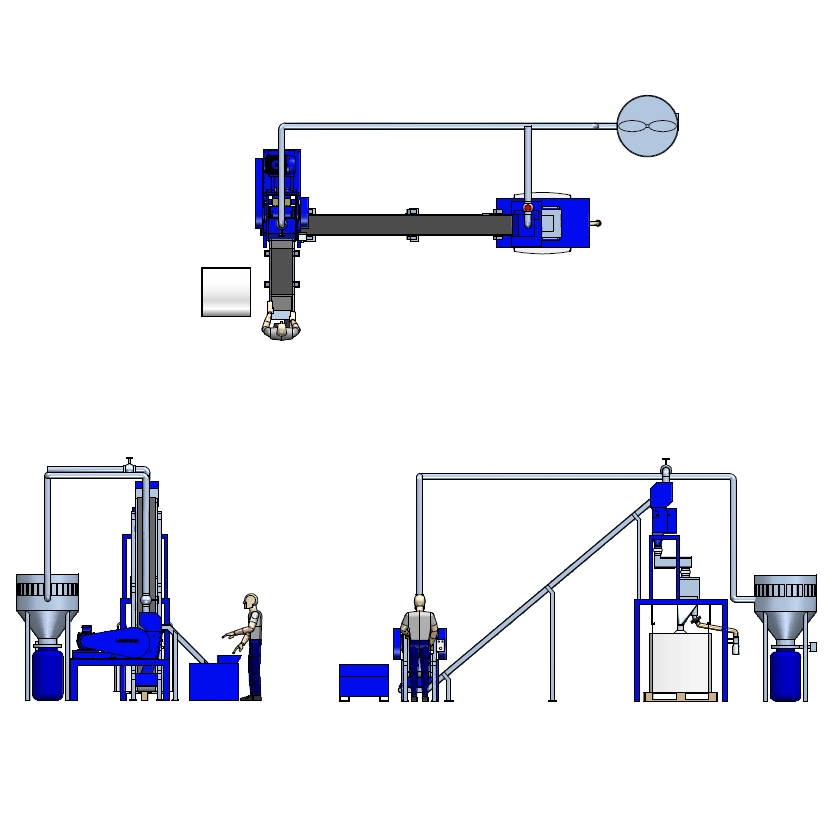

This LAARMANN project presents six different set-up drawings for a gold refinery plant. The layouts show how multiple machines can be combined into one integrated process for material handling, sample preparation and downstream refinement support.
The proposed plant configurations include equipment such as the LMC400 Crusher, a sample divider, a hammer mill, a big bag system and a sieve machine. By combining these machine types in different layouts, the installation can be adapted to different process requirements within a gold refinery environment.
These set-up drawings provide a practical overview of how crushing, dividing, handling and screening stages can be arranged within one refinery concept. They also help illustrate how LAARMANN can configure multiple machines into a coordinated plant design rather than offering only stand-alone equipment.
How it works
How it worksThe project is presented as a series of six alternative set-up drawings for a gold refinery plant. Each drawing combines key process components such as the LMC400 Crusher, sample divider, hammer mill, big bag system and sieve machine into a complete plant concept. By arranging these machines in different ways, the layouts show how crushing, sample handling and screening can be integrated into one refinery-related workflow. This gives customers a clearer view of possible system configurations before a final plant design is selected.
Features and Benefits
- Six alternative plant set-up concepts
- Integrated view of crushing, dividing and screening stages
- Flexible layout options for refinery-related applications
- Clearer planning for multi-machine installations
- Useful concept basis for custom plant design
